59381
HINGE BUTT TEMPLATE KIT
59381

HINGE BUTT TEMPLATE KIT

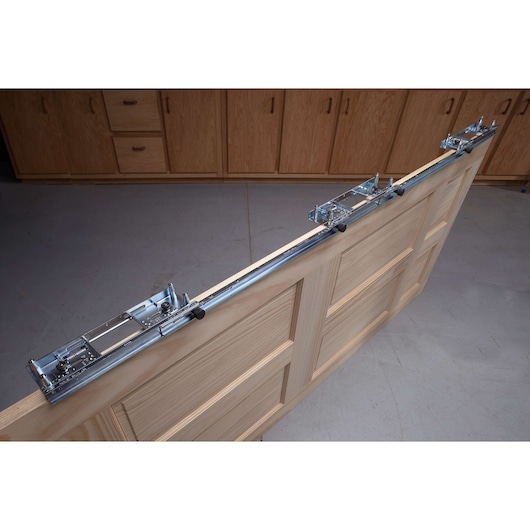

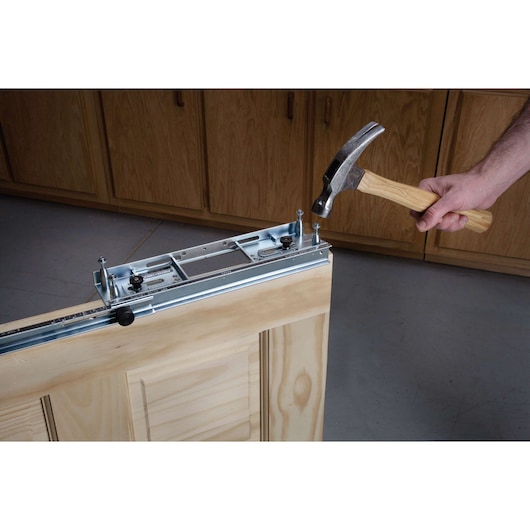

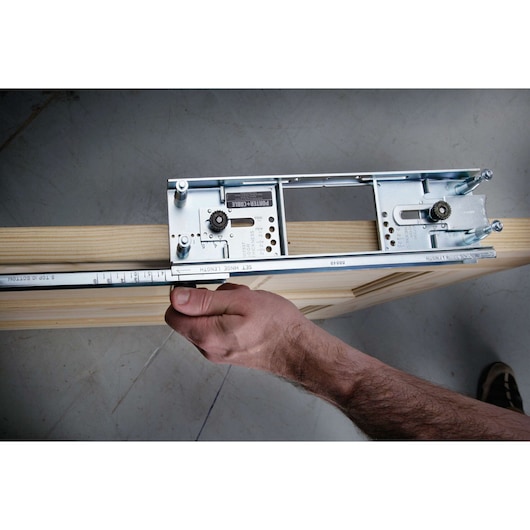

If you need to perfectly match a jamb when hanging a door, this Hinge Butt Template Kit is the hinge template you need. It includes spring-loaded nails that stay up prior to driving and can be removed with a claw hammer, end gauges for each end of the template, thickness pins to mount doors to jambs without jamb stops, and a full-length locator with each template section.

Features

  • Offers a quick, simple and accurate solution when hanging multiple doors
  • Provides the capacity to hang both 3 and 4 hinge doors
  • 3 hinge template set up enables the routing of hinges on doors and frames between 6' and 7' in height
  • 4 hinge template set up enables the routing of hinges on doors and frames between 7' and 8' in height
  • Accommodates hinge sizes from 3" to 6", in 1/2" increments
  • Accommodates doors of various thickness: 1-3/8", 1-3/4", 2", 2-1/4", and 2-1/2"

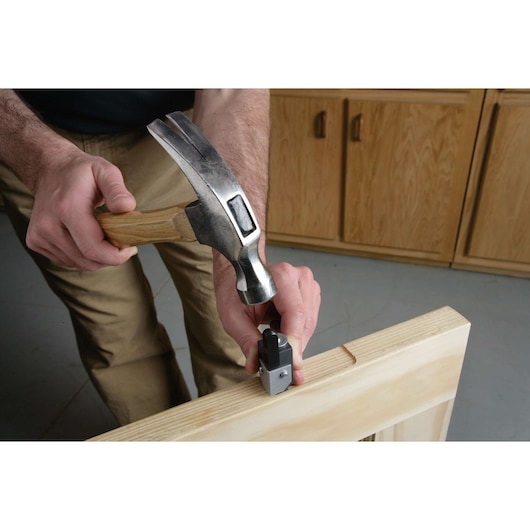

  • Corner chisel accommodates square hinge corners

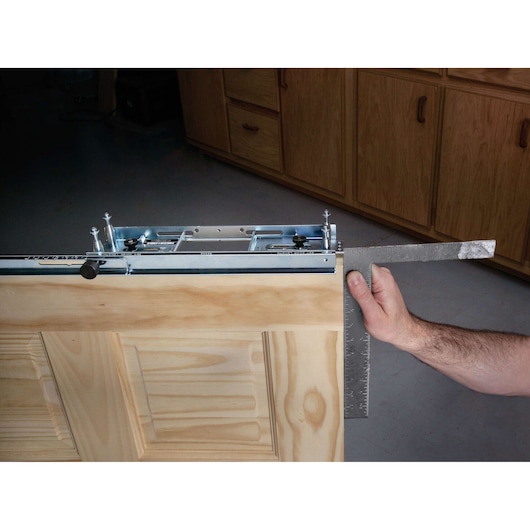

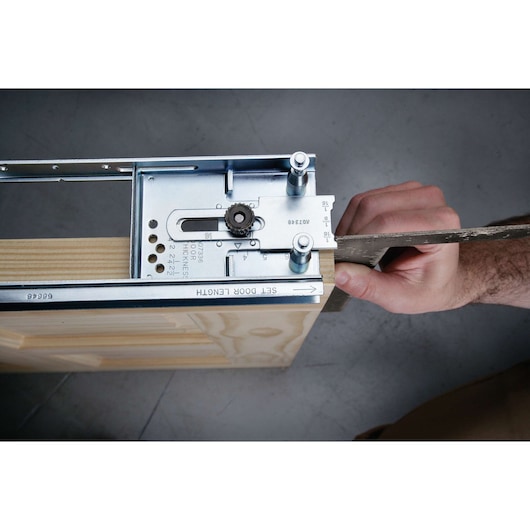

  • End gages enable the simple setting of the distance from template to top and bottom of door

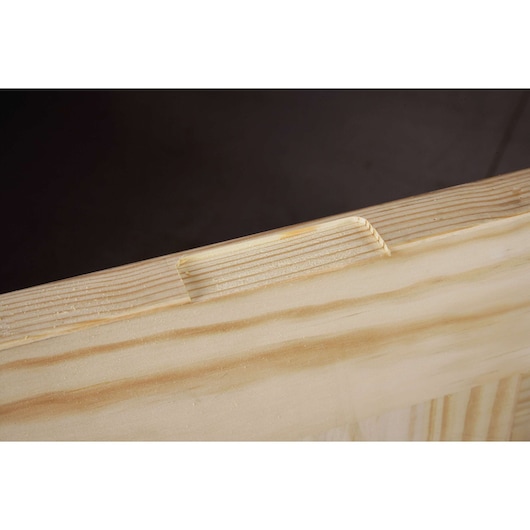

  • Carbide-tipped router bit and template guide included for 1/4" radius hinges
  • 5/8" and 5/16" radius hinge corners can be accommodated with the use of bits and template guides (sold separately)
  • All metal construction provides long term durability

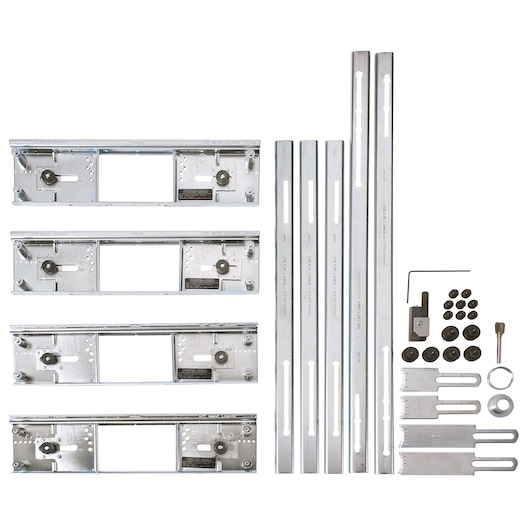

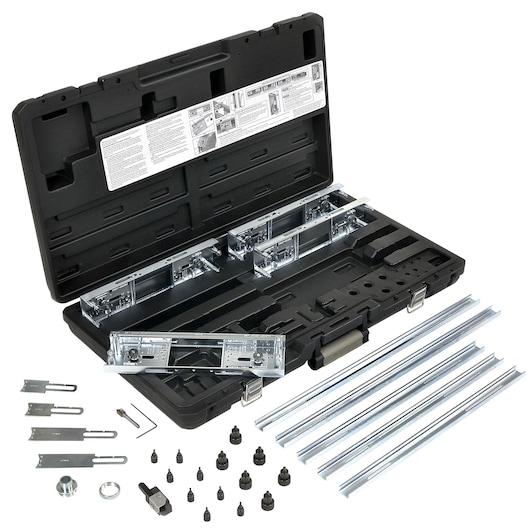

Includes

  • (1) 4 metal hinge templates
  • (1) 3 short steel rails
  • (1) 2 long steel rails
  • (1) Carbide-tipped router bit
  • (1) Template Guide
  • (1) Lock Nut
  • (1) Corner Chisel
  • (1) 2 Pairs of end gages
  • (1) 8 Small thumb screws
  • (1) 6 large thumb screws
  • (1) Hex key
  • (1) Instruction sheet

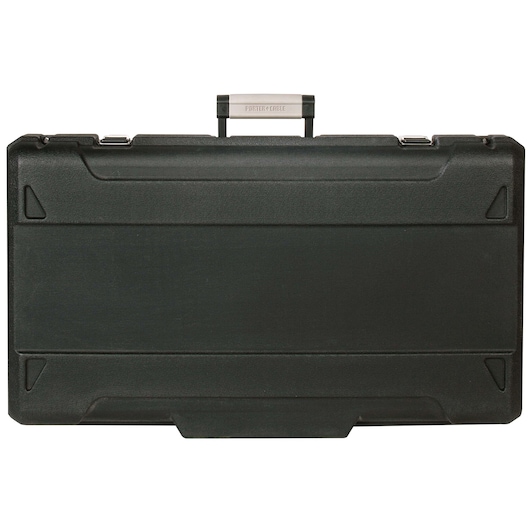

  • (1) Carrying case
